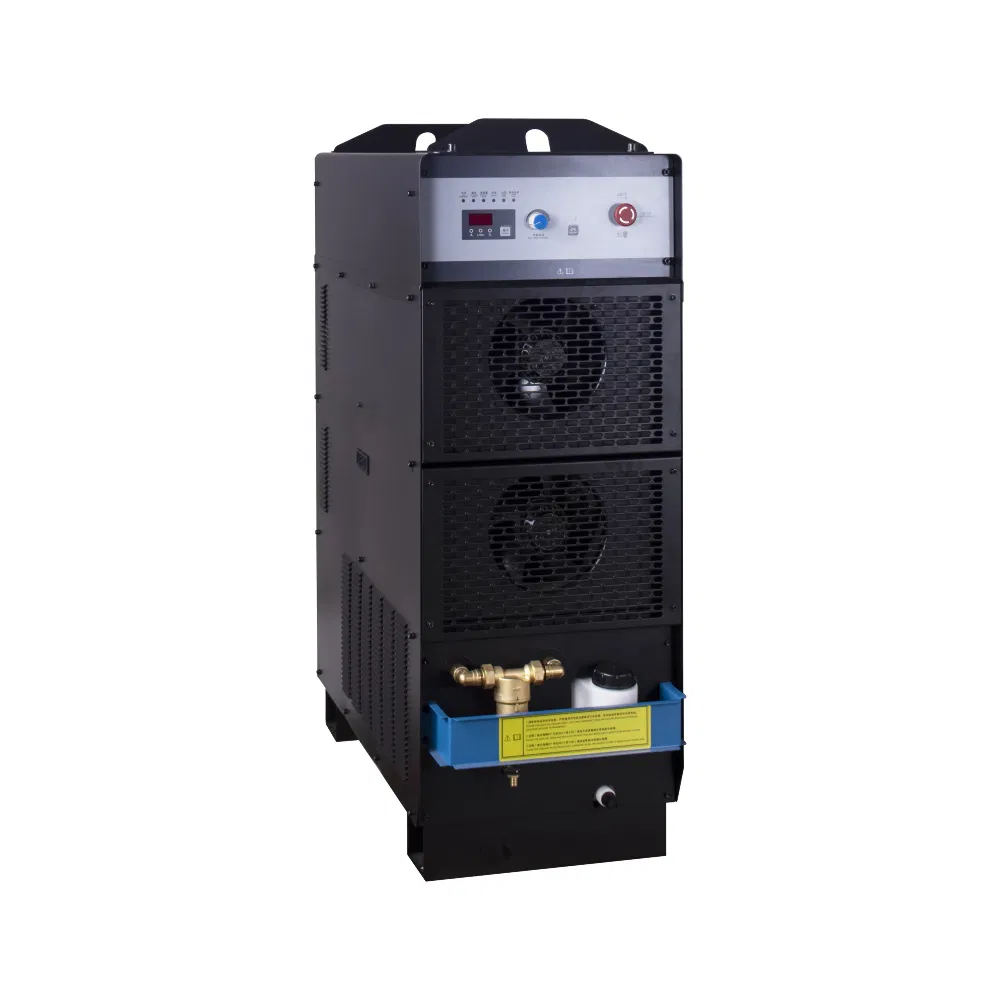

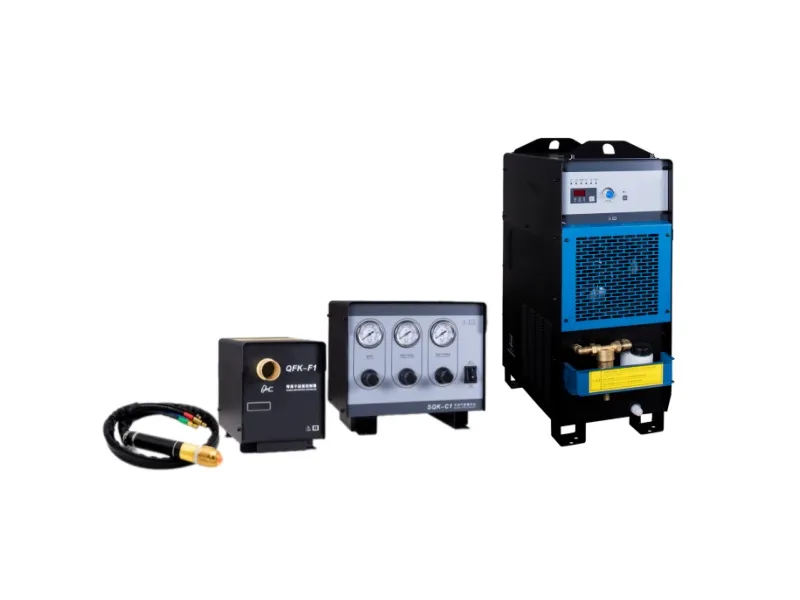

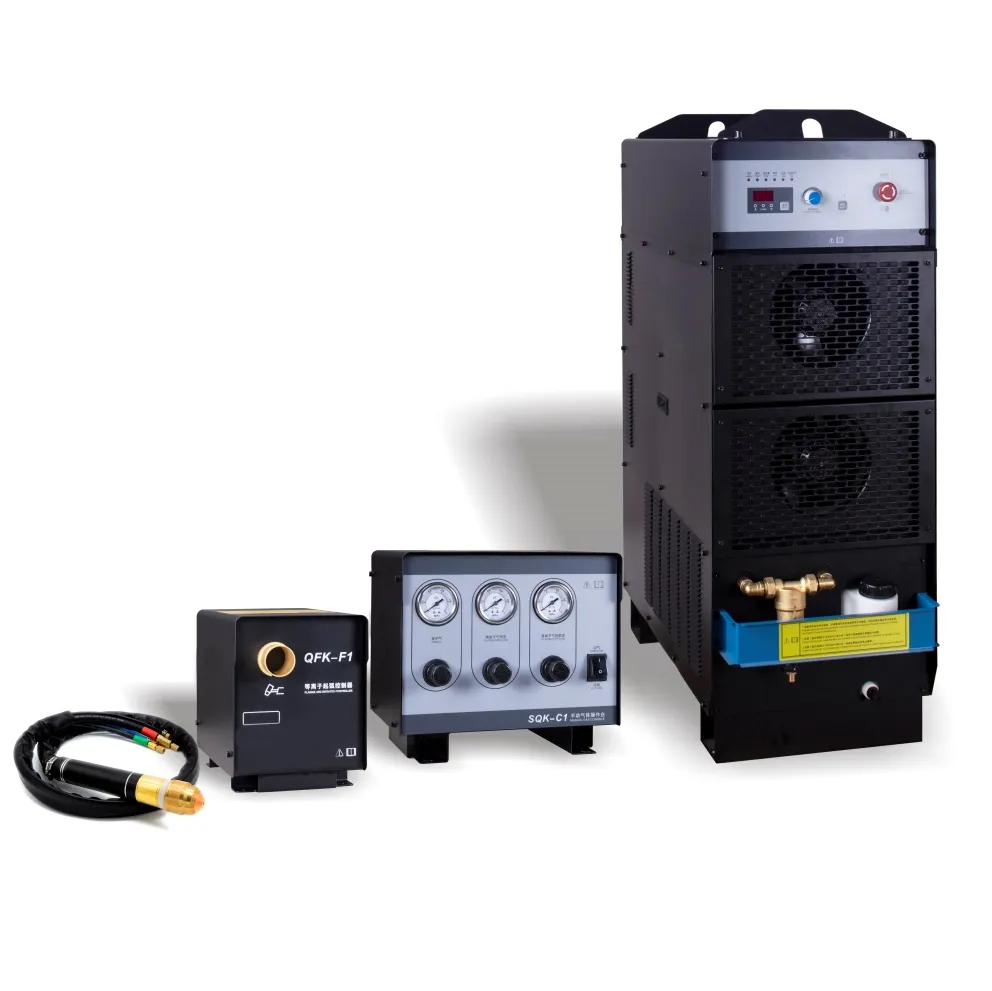

High-performance 400A industrial inverter fine plasma cutter featuring a gas operating table for superior precision cutting up to 50mm in heavy fabrication applications.
Utilizes fine plasma cutting core technology for superior cut quality compared to standard plasma systems.

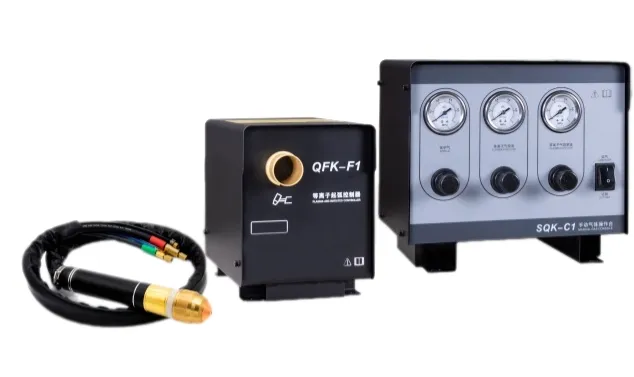

Equipped with a gas operating table enabling independent ionic and protective gas adjustments for high precision.
Features an independent high-frequency arcing controller to minimize system interference and improve reliability.
Incorporates a robust torch cooling system with a high-flow pump for extended consumable life.
Optimized gas path control logic enhances cutting quality, especially for carbon steel using oxygen/air.
Includes analog and RS485 digital communication interfaces for integration with CNC and robotic systems.
Input Power Supply: 3-Phase AC 380V ±15%, 50/60 Hz
Rated Output: 400A / 200V
Maximum Cutting Capability (Carbon Steel): 50 mm
Rated Load Duty Cycle: 100% (at 40°C)
Required Gas Supply Pressure: 0.5 - 0.8 MPa
Net Power Source Weight: 216 kg
